  • ARP Undercut Head Stud Kit Honda 1.6L B16A Civic Ferio Integra Del Sol

ARP Undercut Head Stud Kit Honda 1.6L B16A Civic Ferio Integra Del Sol 208-4601

$175.00

Product Description

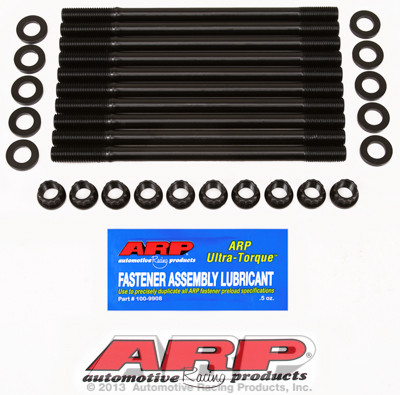

ARP 208-4601 U/C Head Stud Kit. Kit comes with (10) head studs, (10) parallel ground washers, and (10) 12-point nuts needed for a direct bolt on, as well as the ARP moly-lube and instruction sheet. Studs are 8470 chrome moly steel, with a black oxide coating for corrosion resistance. The studs are thread-rolled after heat treat, and center-less ground which results in a studs that has 2000% better fatigue strength than others. ARP studs are rated at 200,000 PSI. The undercut studs equalizes the stretch of the stud, making for a more consistent clamping force, while compensating for the head gasket compression when installed, helping prevent blown head gaskets. Using studs will make it much easier to assemble an engine (especially a racing power plant which must be serviced frequently and quickly!) with the cylinder head and gasket assured of proper alignment. Studs Provide more accurate and consistent torque loading ( When you use bolts to secure the head, the fastener is actually being twisted while it's being torqued to the proper reading. The bolt is reacting to two different forces simultaneously. A stud should be installed in a relaxed mode - never crank it in tightly using a jammed nut. If everything is right, the studs should be installed finger tight. Then, when applying torque to the nut, the stud will stretch only on the vertical axis. Honda B16A DOHC VTEC 1989-1993 Honda Integra XSi 1989-1991 Honda CRX SiR (EF8) 1989-1991 Honda Civic SiR (EF9) 1992–1993 JDM Honda Integra "XSi" (DA6) 1991–1994 JDM Honda Civic Sir/SiRII (EG6) 1991–1993 JDM Honda Civic Ferio SiR (EG9) 1992–1995 JDM Honda CR-X del Sol SiR (EG2) 1996–1998 JDM Honda Civic Sir/SiRII (EK4) 1995–1998 JDM Honda Civic Ferio Si (EK4)

ARP Head Stud Kit. Kit comes with (10) head studs, (10) parallel ground washers, and (10) 12-point nuts needed for a direct bolt on, as well as the ARP moly-lube and instruction sheet. Studs are 8470 chrome moly steel, with a black oxide coating for corrosion resistance. The studs are thread-rolled after heat treat, and center-less ground which results in a studs that has 2000% better fatigue strength than others. ARP studs are rated at 200,000 PSI. The undercut studs equalizes the stretch of the stud, making for a more consistent clamping force, while compensating for the head gasket compression when installed, helping prevent blown head gaskets. Using studs will make it much easier to assemble an engine (especially a racing power plant which must be serviced frequently and quickly!) with the cylinder head and gasket assured of proper alignment. Studs Provide more accurate and consistent torque loading ( When you use bolts to secure the head, the fastener is actually being twisted while it's being torqued to the proper reading. The bolt is reacting to two different forces simultaneously. A stud should be installed in a relaxed mode - never crank it in tightly using a jammed nut. If everything is right, the studs should be installed finger tight. Then, when applying torque to the nut, the stud will stretch only on the vertical axis.

Fits:

  • 1999-2000 Honda Civic Si 1.6L B16A DOHC VTEC
  • 1993-97 Honda Del Sol VTEC 1.6L B16A DOHC VTEC
Quantity:
SKU:
15208-4601
