  • ARP Undercut Head Stud Kit Honda K20 K20A/Z K24 K24A/Z Civic Si Integra Accord RSX

ARP Undercut Head Stud Kit for Honda K20 K20A/Z K24 K24A/Z Civic Si Accord RSX Acura Integra 208-4701

Out of Stock

$168.00

Product Description

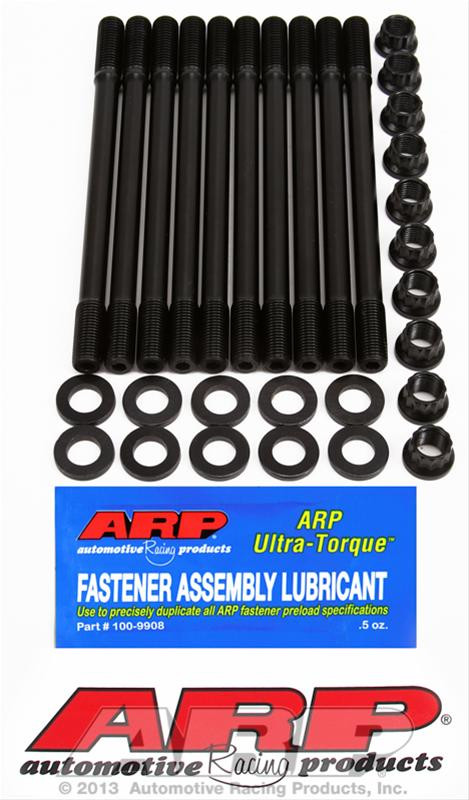

Kit comes with (10) head studs, (10) parallel ground washers, and (10) 12-point nuts needed for a direct bolt on, as well as the ARP moly-lube and instruction sheet.

Studs are 8470 chrome moly steel, with a black oxide coating for corrosion resistance. The studs are thread-rolled after heat treat, and center-less ground which results in a studs that has 2000% better fatigue strength than others.

ARP studs are rated at 200,000 PSI. The undercut studs equalizes the stretch of the stud, making for a more consistent clamping force, while compensating for the head gasket compression when installed, helping prevent blown head gaskets. Using studs will make it much easier to assemble an engine (especially a racing powerplant which must be serviced frequently and quickly!) with the cylinder head and gasket assured of proper alignment.

Studs Provide more accurate and consistent torque loading ( When you use bolts to secure the head, the fastener is actually being twisted while it's being torqued to the proper reading. The bolt is reacting to two different forces simultaneously. A stud should be installed in a relaxed mode - never crank it in tightly using a jammed nut.

If everything is right, the studs should be installed finger thight. Then, when applying torque to the nut, the stud will stretch only on the vertical axis.

For Honda K20A2, K20A3, K20Z1, K24Z1, K24A1, K24A4

Applications:

  • 06 Acura RSX K20A3
  • 02-04 Acura RSX Type-S K20A2
  • 05-06 Acura RSX Type-S K20Z1
  • 04-08 Acura TSX K24A2
  • 02-05 Honda Civic SI K20A3
  • 06-11 Honda Civic SI K20Z3
  • 02-06 Honda CRV K24A1
  • 07-08 Honda CRV K24Z1
  • 03-05 Honda Accord K24A4
  • 03-06 Honda Element K24A4
  • 06-07 Honda Accord K24A8
  • 07-08 Honda Element K24A8
  • 01+JDM Honda Civic and Integra Type-R
  • K20A K24 Block / K20 head swaps.
Quantity:
SKU:
15208-4701
