  • C4194-040 85mm .040" Head Gasket for Honda B18A/B B20 LS Blocks w/ B18C B16A VTEC Heads
  • C4194-051 85mm .051" Head Gasket for Honda B18/B B20 LS Blocks w/ B18C B16A VTEC Heads
  • C4194-030 85mm .030" Head Gasket for Honda B18A/B B20 LS Blocks w/ B18C B16A VTEC Heads

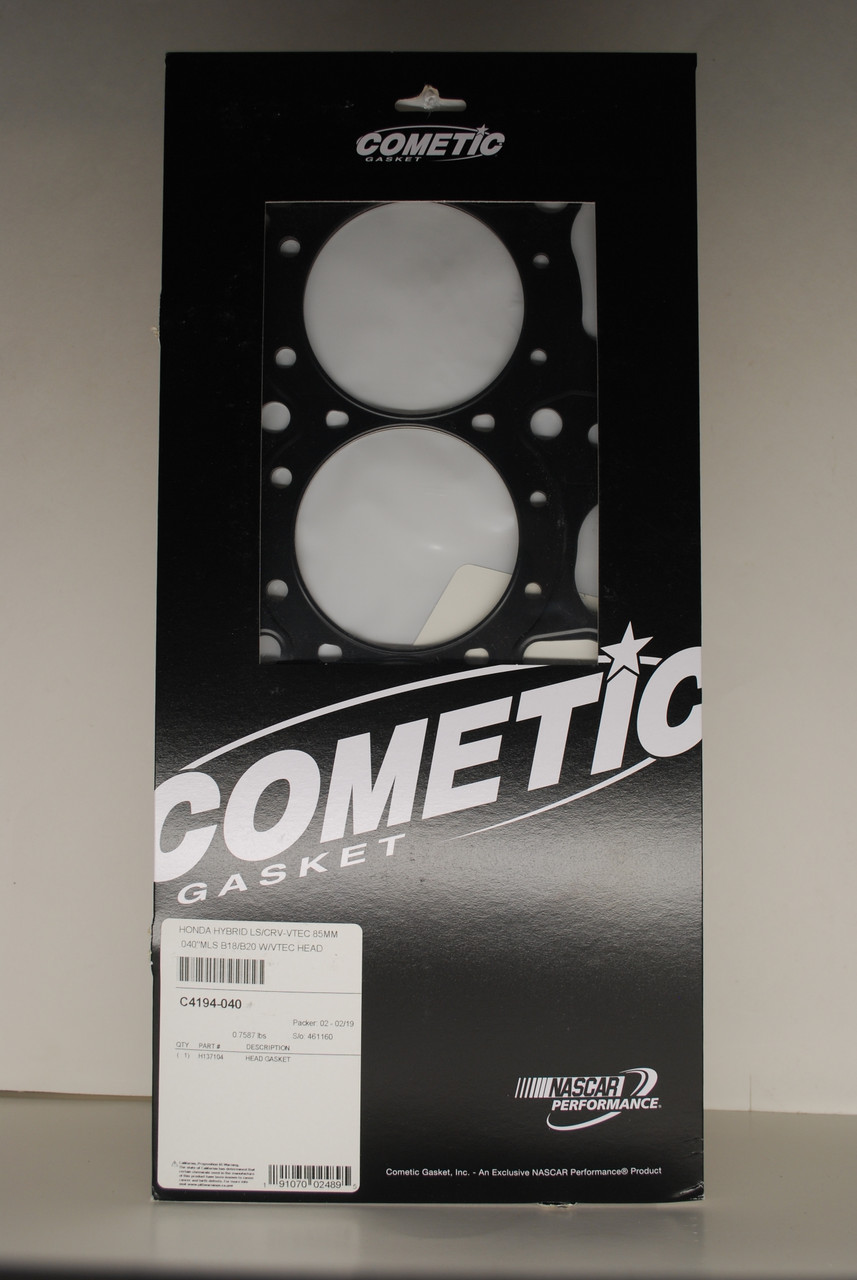

85mm Cometic Head Gasket for Honda B18A B18B w/ VTEC Head

$118.00

Product Description

Cometic Multi-Layer-Steel (MLS) head gasket for Honda 1.8L B18A/B with B18C or B16A heads. Cometic MLS head gaskets are made of three layers of stainless steel, with outer layers coated in Viton (material that is heat resistant to 250 C/ 482 F). MLS gaskets provide maximum sealing performance for today’s high output engines and require no sealants. Please select from drop down menu below the desired thickness.

Multi-Layer-Steel (MLS) head gasket for Honda LS-VTEC hybrids. Cometic MLS gasket are comprised of three layers of Stainless Steel. Cometic uses Stainless steel for increased strength, it's ability to rebound, and its corrosion resistance. The outer layers of the gasket are embossed and coated on both sides with a fluoroelastomer rubber based material (viton) designed to meet the demands of a variety of harsh sealing environments, load conditions and surface finishes. The Viton coating is heat resistant to 250°C or 482°F. The center or shim layer of the gasket is comprised of an uncoated stainless steel layer, which varies in thicknesses to meet the needed requirements. MLS gaskets are ideal for both aluminium heads to cast iron blocks as well as aluminium head to aluminium blocks. They can withstand the shearing force created by the two materials. The composition of MLS will also withstand the shearing forces created by aluminium heads on cast iron blocks. No re-torque is necessary. By design the MLS gasket promotes an even torque load across the sealing surface allowing for measurable reduced bore distortion.

Bore: 85mm

Thickness: .030", .040", or .051"

Please select from drop down menu the desired bore and thickness

Applications:

B18A/B and B20 (L/S) block w/ B18C or B16A (VTEC) heads.

Quantity:
SKU:
C4194
